Quick start

Quick Start Examples for CICD

Step 1. Create Jenkinsfile

1. Add a Jenkinsfile to your branch

   • ${WORKSPACE}/Jenkinsfile ```groovy @Library(‘spc-ci@v2’) _

   def ctx = ci([ service: ‘spc-ci-example’, branch: ‘master’,

   components: [
       [
           name: "spc-ci-example",
           type: "docker",
           source: "spc-ci-example:latest",
       ]
   ],

   build_closure: {
       echo 'spc-ci-example build'
       sh '''
           make clean
           make docker-build
       '''
   },

   test_closure: {
       echo 'spc-ci-example test'
       sh '''make testci'''
   },

   ansible: [
       git_branch: 'master',
       playbook: 'platform.yml',
       tags: 'spc-ci-example',
       extras: ''
   ]


   ]) ```

Step 2. Create Jenkins Job

1. https://ci.spcconsole.com (OAuth with Github account)

   1. Create New Item
      • Copy from # spc-ci-example

   2. Configure multipipeline

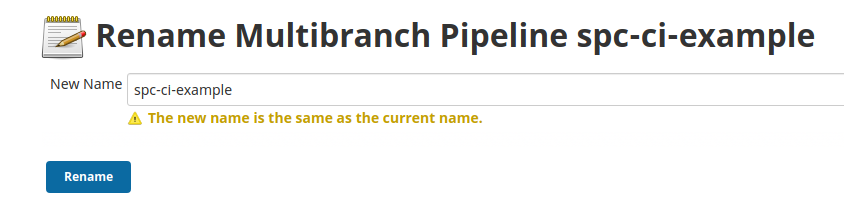

      1. Rename multibranch pipeline
         • ex) Jenkins > next > # spc-ci-example > - Build > Rename

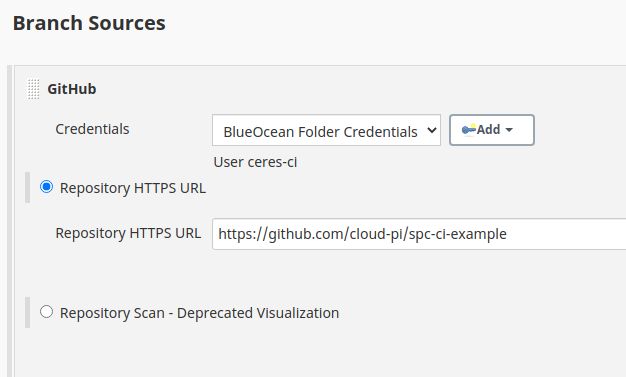

      2. Configure GitHub repository
         • Jenkins > next > # spc-ci-example > - Build > Configure

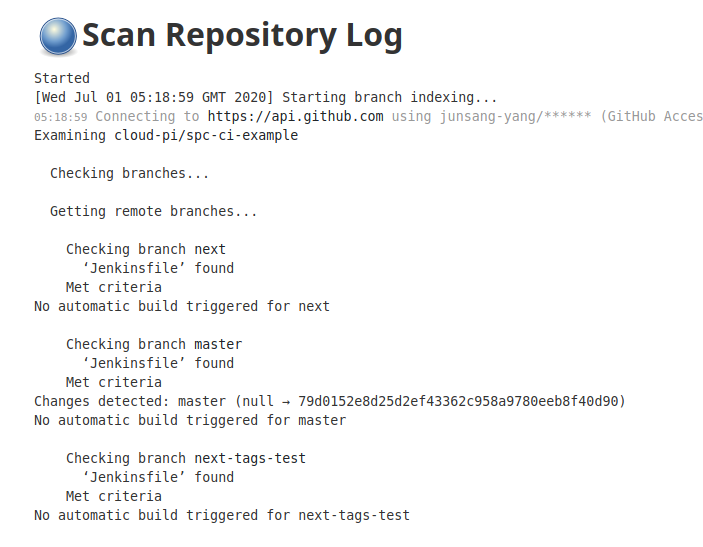

      3. Scan Repository
         • After the above configuration, the multibranch job will scan for new branches automatically.
      4. Build Strategies
         • Jenkins > next > # spc-ci-example > - Build > Configure

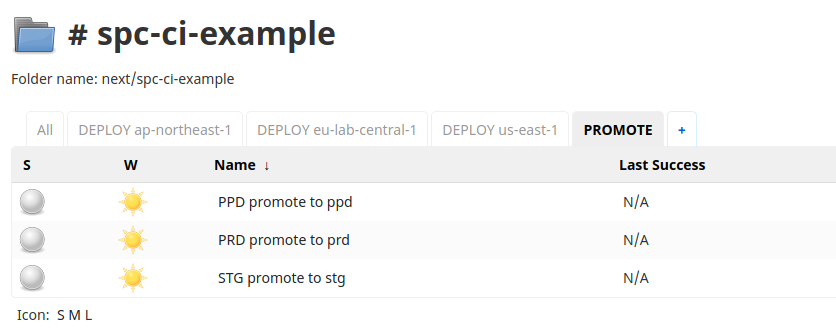

   3. Update pipeline for promote

      • ex) Jenkins > next > # spc-ci-example > PROMOTE > STG promote to stg > configure > pipeline groovy @Library('spc-ci@v2') _ ci.promote([ service: 'spc-ci-example', promote_to: 'stg' ])

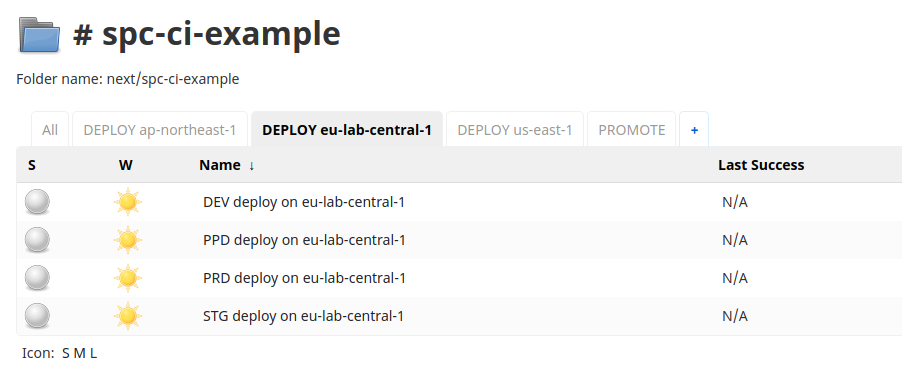

   4. Update pipeline for deployment

      • ex) Jenkins > next > # spc-ci-example > DEPLOY eu-lab-central-1 > DEV deploy on eu-lab-central-1 > configure > pipeline groovy @Library('spc-ci@v2') _ ci.deploy([ service: 'spc-ci-example', environment: 'dev', region: 'eu-lab-central-1', ansible: [ git_branch: 'v2', playbook: 'platform.yml', tags: 'spc-ci', extras: '' ] ]) `

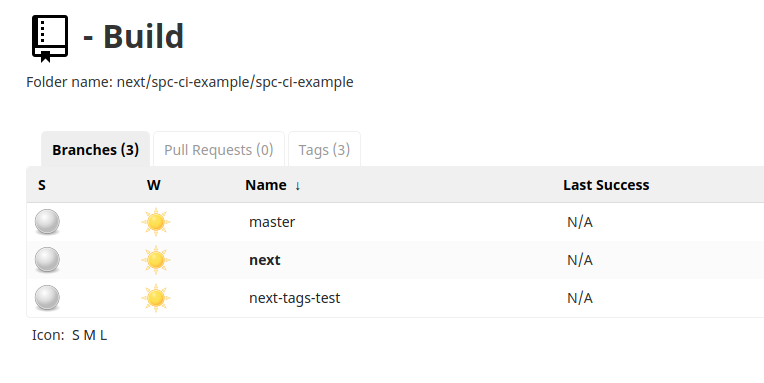

Step 3. Build

• Whenever a code commit occurs, a build should be triggered.

Step 4. Promotion

Step 5. Deploy

• NOTE: Check ‘# spc-ci-example’ job

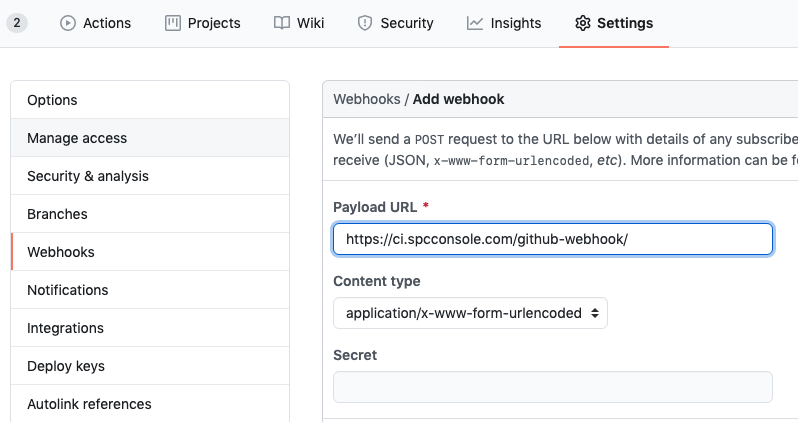

Step 6. Add WebHook URL

• Add a web-hook URL to your repository settings.
  • https://ci.spcconsole.com/github-webhook/
• It’s the trigger of CI.
